0.6T Wheel Loader

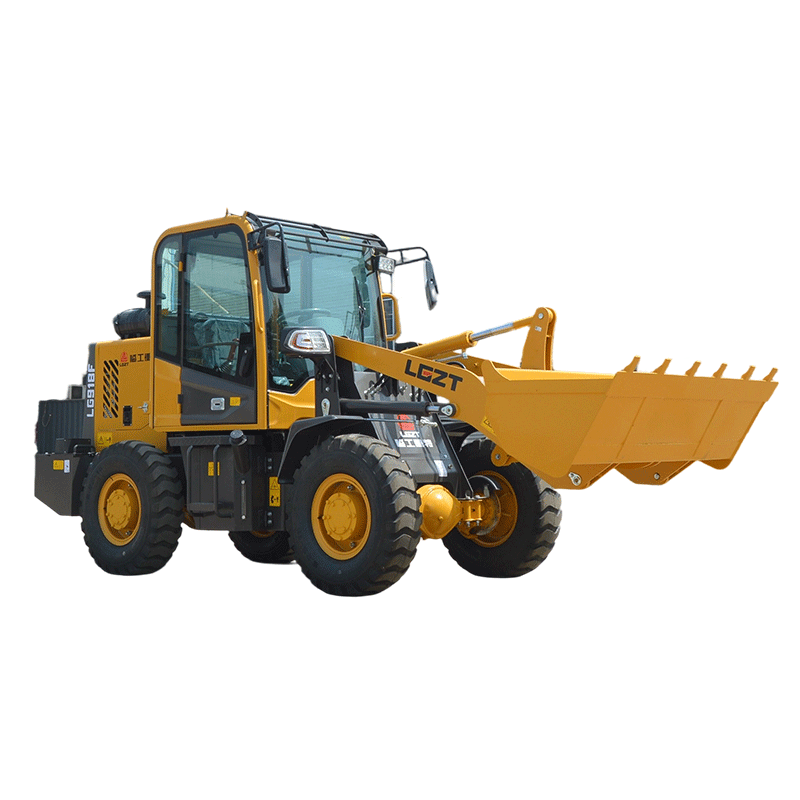

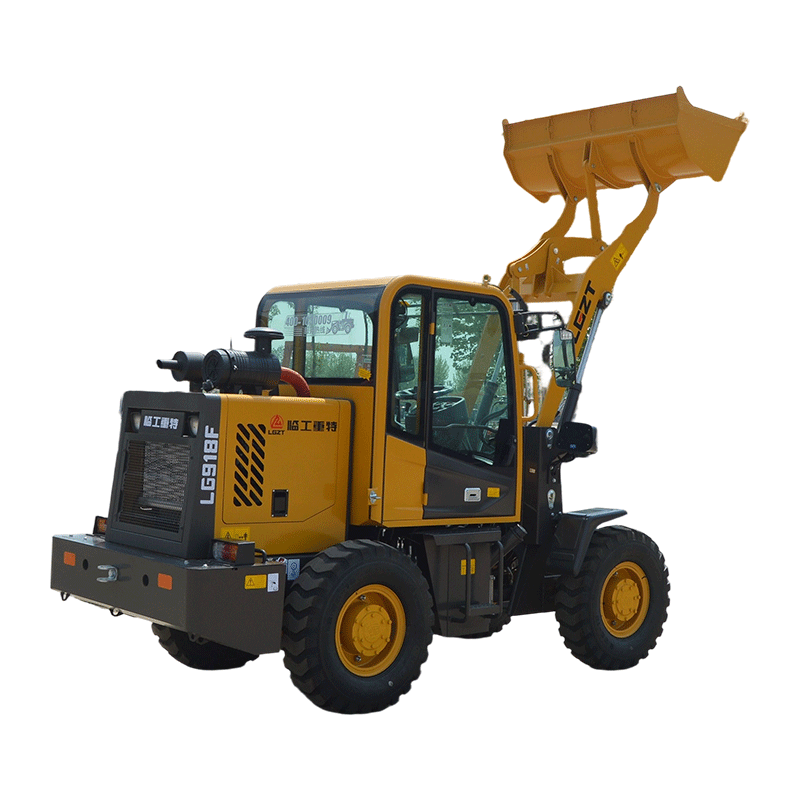

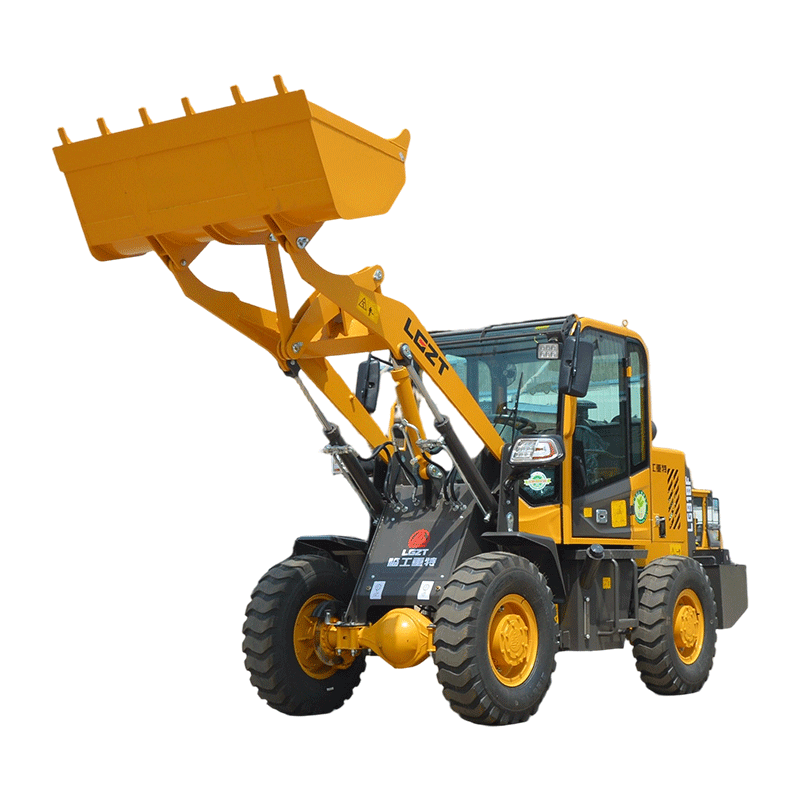

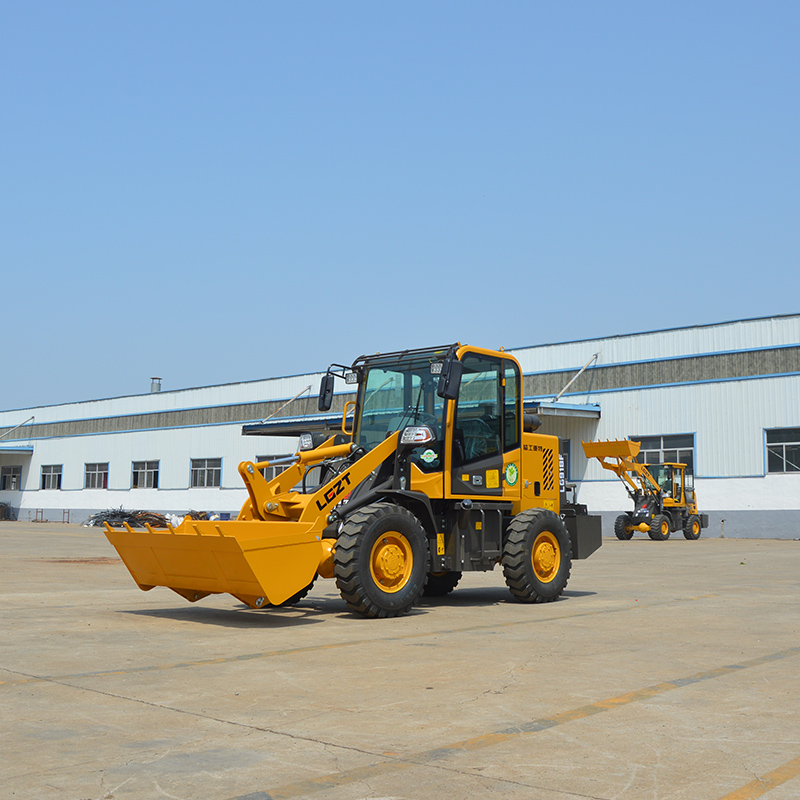

LG918F Wheel Loader
Compact Yet Powerful Design
With a compact body (1.54m wide, 4.8m long, 2.2m high), the LG918F easily maneuvers in tight spaces while maintaining a rated load of 600 kg.
Excellent Ground Adaptability
Equipped with 8.25-16 tires and a strong grip, it performs reliably on muddy, sandy, or uneven terrain.
High Operational Efficiency
Features automatic bucket leveling, a 2.45m standard unloading height (optional 3m), and fast cycle times—boosting work efficiency by over 10%.
LG918F loader with a rated load of 600 kg. The standard version has a well-designed size, with a width of 1.54 meters and a length of 4.8 meters, while the height of the body is just 2.2 meters. Equipped with 265 integrated transmission, smooth and stable power transmission and 8.25-16 tires. Strong grip, good passability, to ensure stable forward movement in muddy ground, sandy field and other poor working conditions.
LG918F loader, standard 2.45 meters unloading height, also can be optional 3 meters unloading height, bucket can be automatically leveled. The three items are combined in a short time, and the operating efficiency is increased by more than 10%. The minimum turning radius is as low as 4.05 meters, and the compact body and flexible movement are widely used in storage, farms, municipal, small infrastructure, grain operations and other small working conditions.
LG918F is not only equipped with bucket as standard, but also can be equipped with grass catcher, snowplow, wood catcher and other auxiliary equipment according to the needs. A large of auxiliary accessories can meet a variety of operational needs.
LG918F small loader saves time and labor, and is a proper mechanical helper. Since it was put on the market, it has been exported to more than 20 countries and regions, such as Russia, Australia, Vietnam, etc., and has been recognized by customers at home and abroad.
Performance Parameters:
Item | Parameters | Item | Parameters |
Minimum turning radius(mm) (Outer edge of right front wheel) | 4615 | Bucket width/depth (mm) | 1500/390 |
Theoretical climbing capacity(°) | 25 | Wheelbase (mm) | 1955 |
Maximum traveling speed(Km/h) | 26 | No-load lifting time(s) | 3.81 |
Minimum traveling speed(Km/h) | 5 | No-load lowering time(s) | 2.92 |
Maximum unloading height(mm) | 2490 | No-load unloading time(s) | 0.71 |
Unloading distance(mm) | 600 | Three sum time(s) | 7.44 |
Unloading angle(°)Theoretical value | 34 | Maximum rising power(kN) | 12.4 |
Braking distance | 3435 | Maximum traction force(kN) | 22.6 |
Bucket capacity(m³) | 0.4 | Joint working condition traction force(kN) | 17 |
Tipping load(kN) | 14.5 | Highest position lifting force(kN) | 13.4 |
Dimensions And Weight Parameters:
Item | Parameters | Item | Parameters | |
Length(mm)(standard bucket) | 4600 | Minimum Ground Clearance(mm) | 300 | |
Height(mm) | 2200 | Wheelbase(mm) | 1180 | |
Width(mm) | 1530 | |||
Weights | Rated loading mass Kg | 600 | ||
Weight of the whole machine(without person)Kg | 2225 | |||
Engine Parameters:
Item | Parameters | Item | Parameters |
Model | SDDW4U | Number of cylinders | 4 |
Manufacturer | Sida | Bore/stroke (mm) | 93*100 |
Rated power(/kW) | 36.8 | Minimum Fuel Consumption Rate(g/kW.h) | ≤225 |
Rated speed(r/min) | 2400 | Maximum torque(N.m) | 177 |
Displacement (L) | 2.77 | ||
Transmission System:
Item | Parameters |
Type | 265 one piece single height |
Transmission Gear | Front 2 Rear 2 |
Brake Type | Air Brake |
Axle | 130 axle |
Tire Model | 8.25-16 |
Front Wheel Air Pressure (Mpa) | 0.3 |
Rear wheel air pressure (Mpa) | 0.28 |
Steering System:
Item | Parameters |
Type | Fully hydraulic steering |
Steering angle(°) | 30 |
System working pressure (Mpa) | 16 |
Refueling Capacity:
Item | Parameters | Item | Parameters |
Fuel oil(L)/theoretical volume | 45 | Engine(L) | 5.8 |
Hydraulic oil (L) / theoretical volume | 19 | Transmission (L) | 19 |
Bridge (L) - Single | 6 | Brake System(L) | 1.3 |
Company Strength:
Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.
The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
