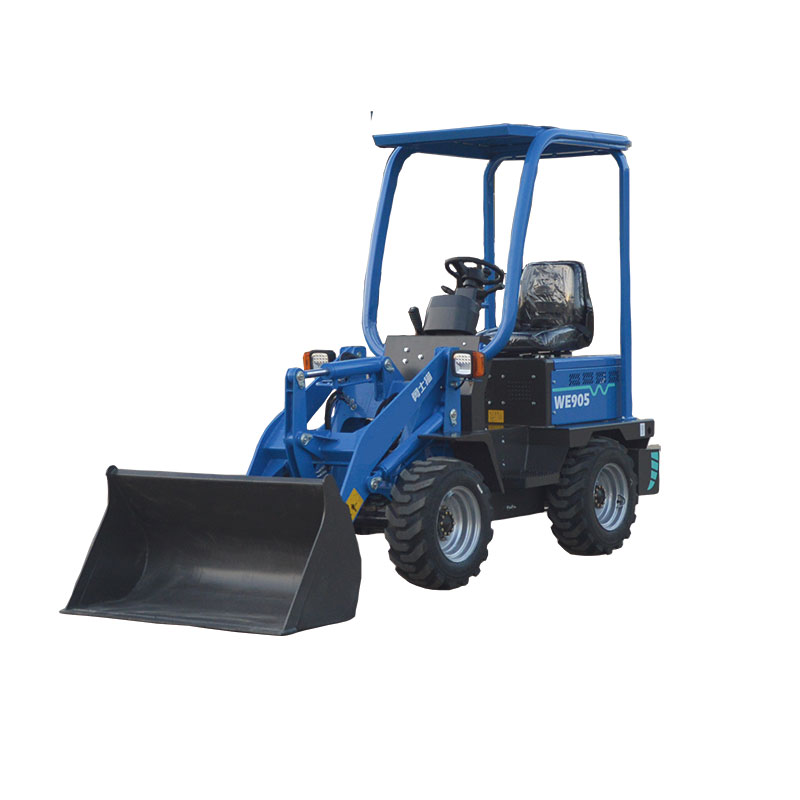

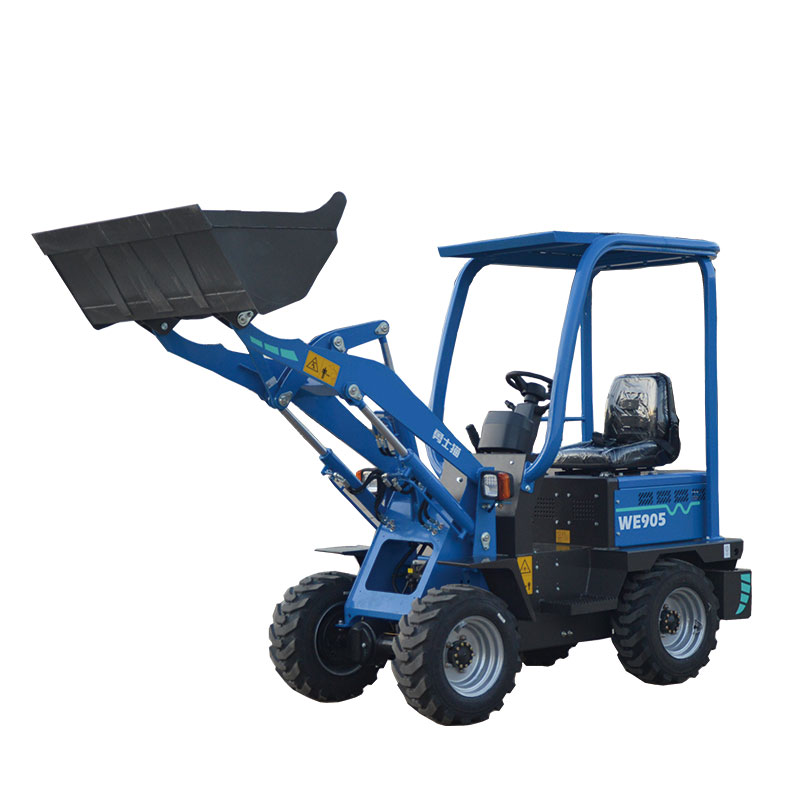

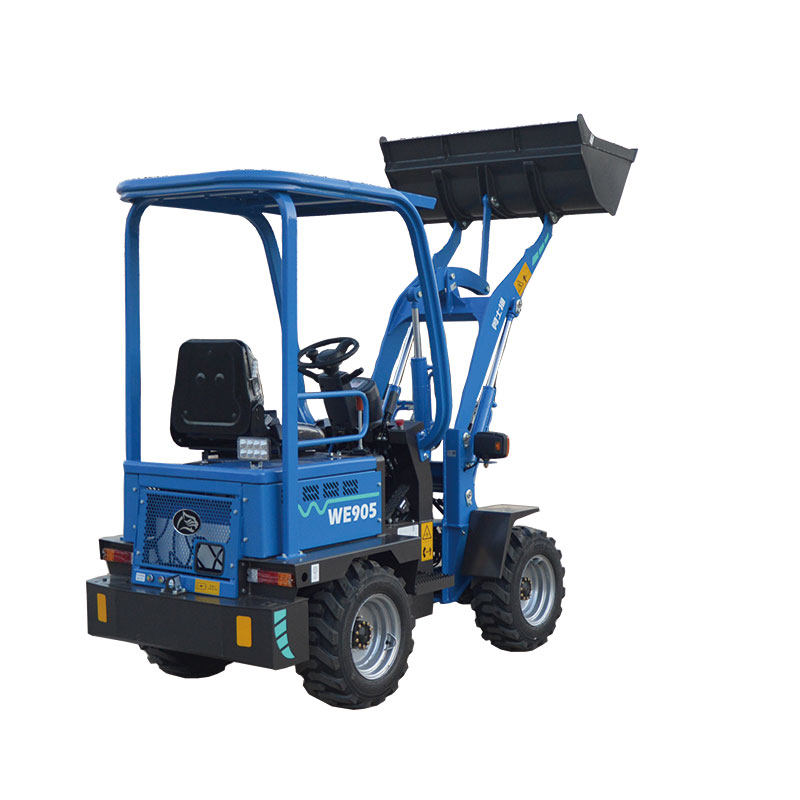

Electric Loader Tractor
1. Pure electric chassis
2. No pollution
3. Zero emission
4. Low noise
5. Good vehicle handling performance
The WE905 electric loader adopts the mature dual-axle dual-motor drive solution currently on the market, with the characteristics of high transmission efficiency, low parasitic power, fast acceleration, and high working efficiency; the working device adopts the company's LG918F mature model for optimization and reduction, and has the characteristics of large lifting capacity, good automatic leveling performance, and stable operation; articulated frame, full hydraulic steering; front and rear frames adopt the traditional loader structure solution, with reasonable force and good reliability; optimize the control strategy of traction motor and hydraulic pump motor to reduce unnecessary energy waste and further improve its endurance; the power battery is equipped with high-performance ternary lithium battery and optimized BMS management system.
Technical Parameters：
| ITEM | SPECIFICATIONS | UNIT | ||
| Rated loading capacity | 500 | kg | ||
| Horizontal loading | 0.18 | m3 | ||
| Capacity of bucket | Vertical loading | 0.25 | m3 | |
| Working weight | 1200 | kg | ||
| Dumping height | 1850 | mm | ||
| Dumping distance | 573 | mm | ||
| Lifting | 6.4 | s | ||
| Working time | Decling | 3.6 | s | |
| Dumling | 1.7 | s | ||
| Forward | 16 | km/h | ||
| Max.Speed | Reverse | 16 | km/h | |
| Max. traction force | Forward | 8.5 | kN | |
| in each gear | Reverse | 8.5 | kN | |
| Max. Gradeability | 45 | % | ||

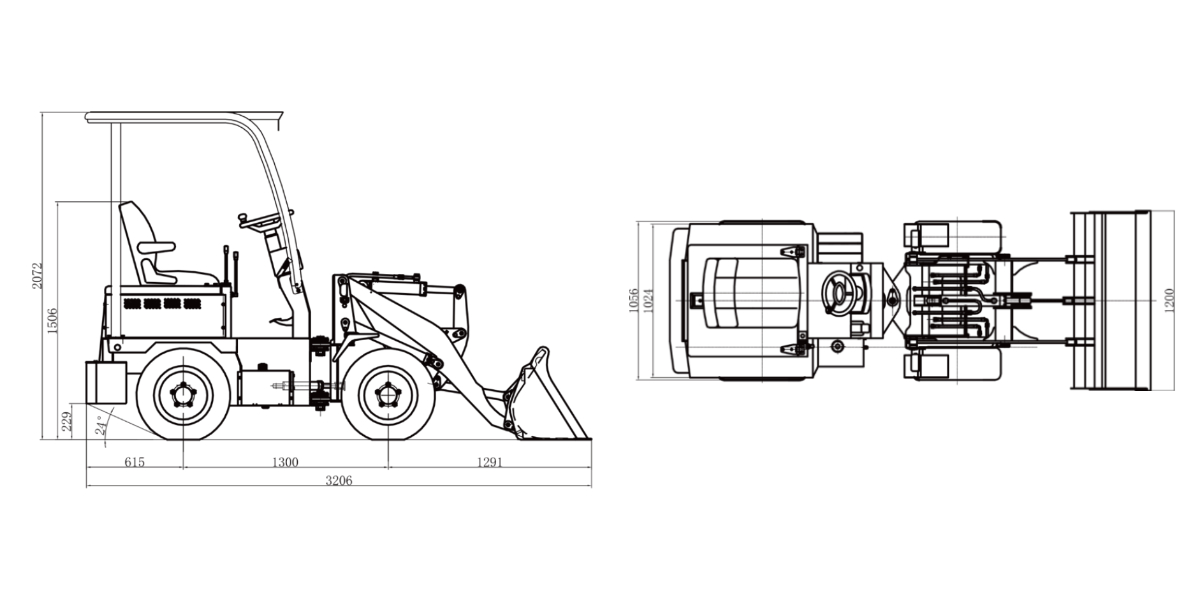

| Outside of bucket | 3344 | mm | ||
| Min. turning radius | The inner side | 1838 | mm | |
| of the loader body | ||||
| Machine length | 3206 | mm | ||
| Overall dimensions | Machine height | 1506/2072 | mm | |
| Machine width | 1056 | mm | ||
| Width of bucket | 1200 | mm | ||
| Wheel base | 1300 | mm | ||
| Wheel spacing | 840 | mm | ||
| Max. steering angle (Left/Right) | 30 | ° | ||
| Min. ground clearance | 195 | mm | ||
| Departure angle | 30 | ° | ||
| Lateral swing angle of subframe (±) | 6 | ° | ||
| Excavation depth (bucket tilt forward 10 °) | 90 | mm | ||
Company Strength:

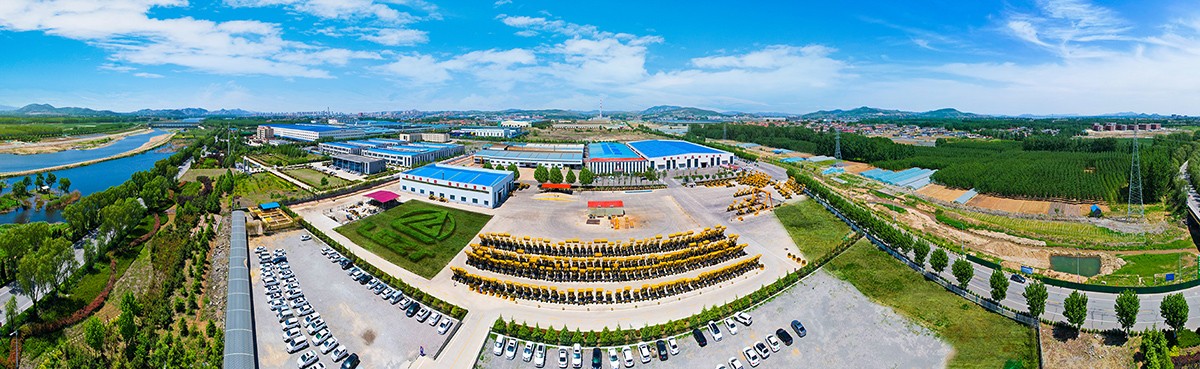

Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.

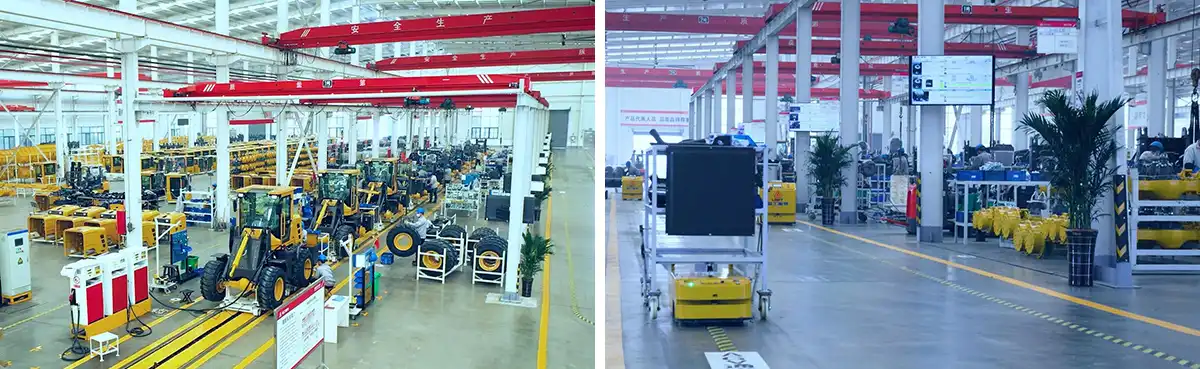

The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
