Small Rough Terrain Forklift

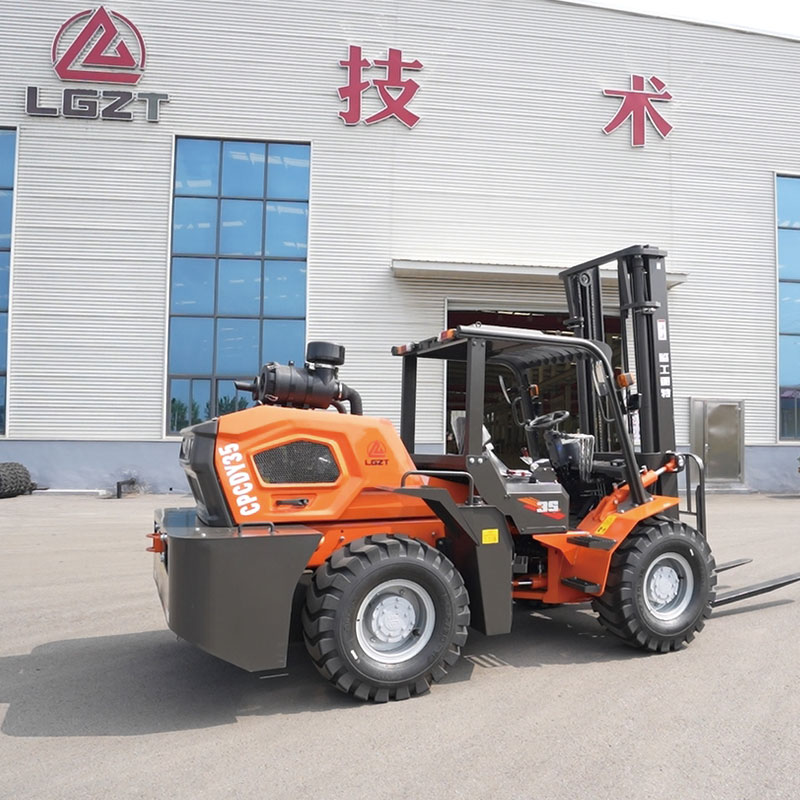

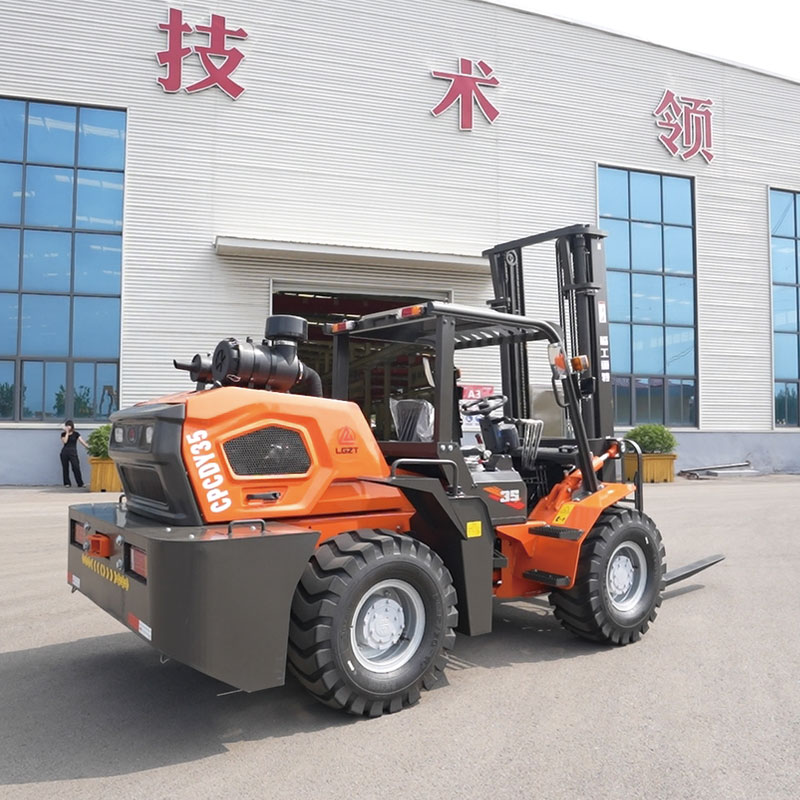

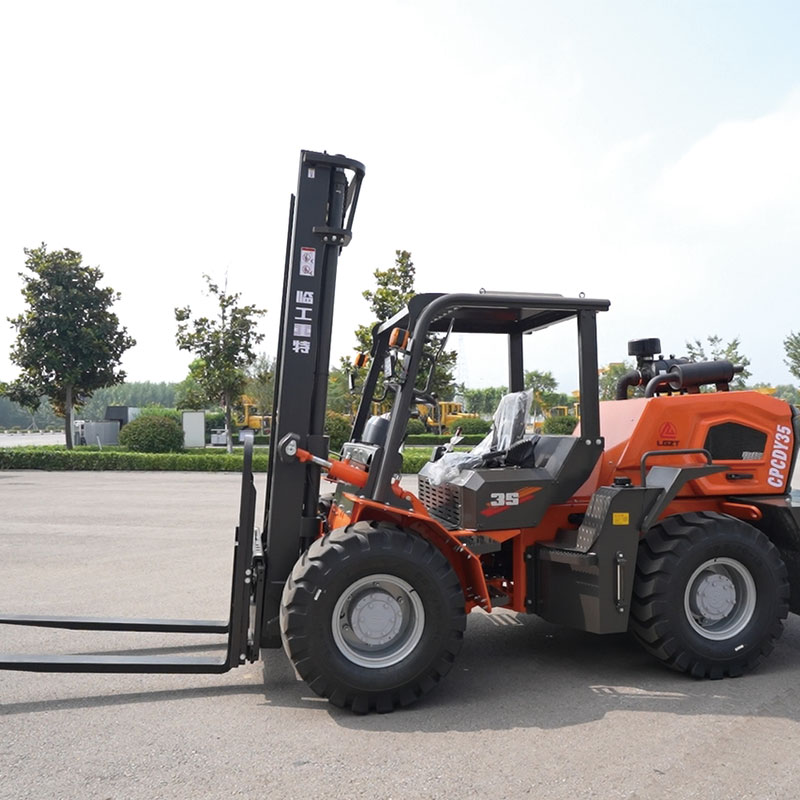

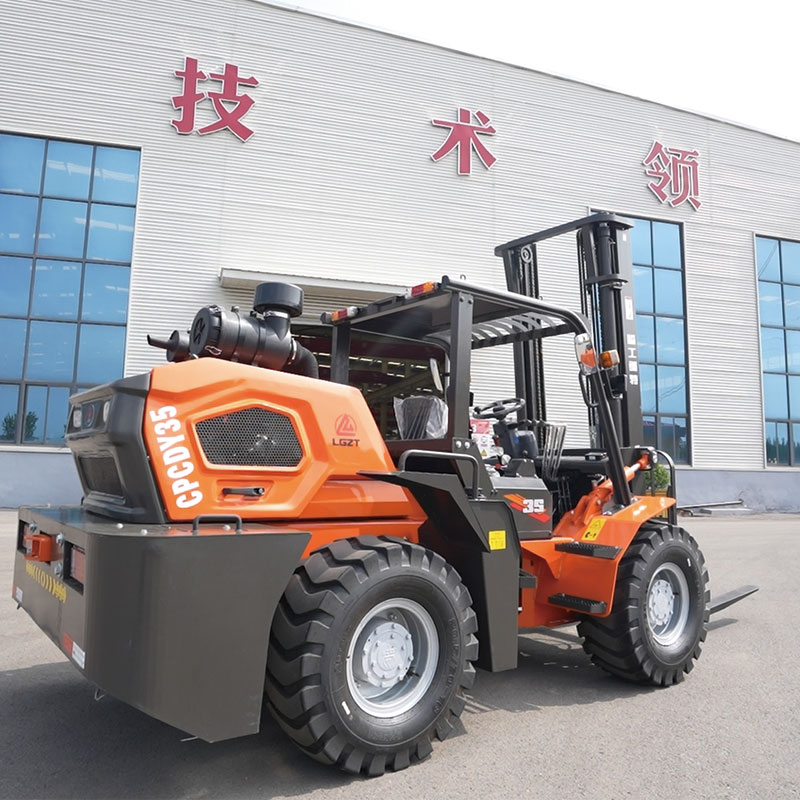

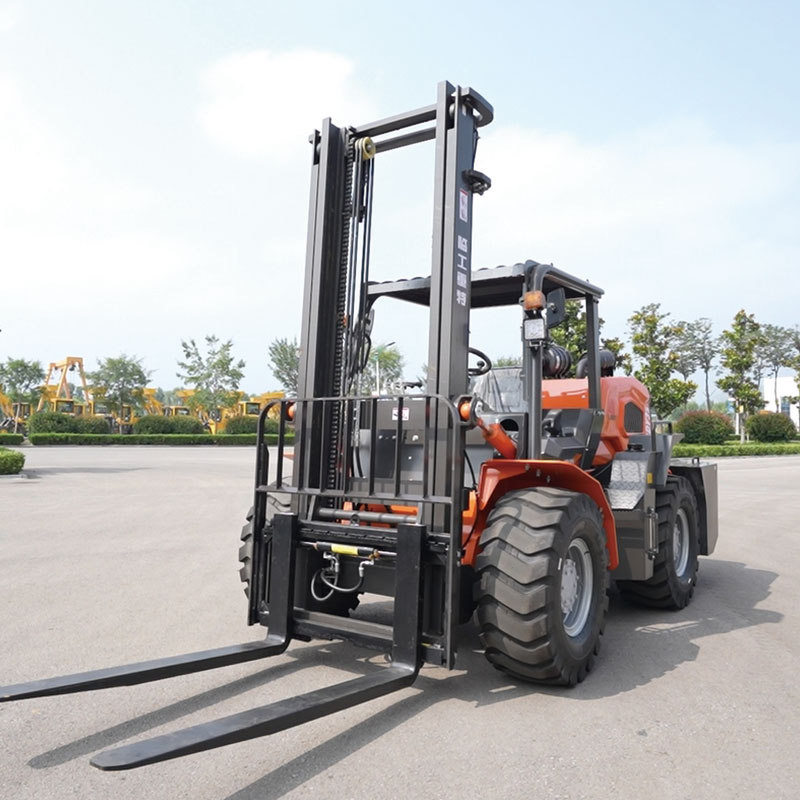

CPCDY35 Rough Terrain Forklift
The engine has strong power.
Adapt to all terrain working conditions
Reinforced drive axle
The turning radius is small and the operation is flexible
Unlike their warehouse counterparts, Small Rough Terrain Forklifts boast enhanced mobility and durability. Key features typically include powerful engines .
The versatility of the Small Rough Terrain Forklift makes it indispensable across various demanding industries. From loading lumber in forestry operations 1 to moving supplies on remote construction projects or managing hay bales on farms, its ability to tackle uneven, unpaved, or soft terrain reliably boosts productivity and safety where standard forklifts simply cannot operate effectively. Their design prioritizes overcoming the obstacles inherent in outdoor material movement .

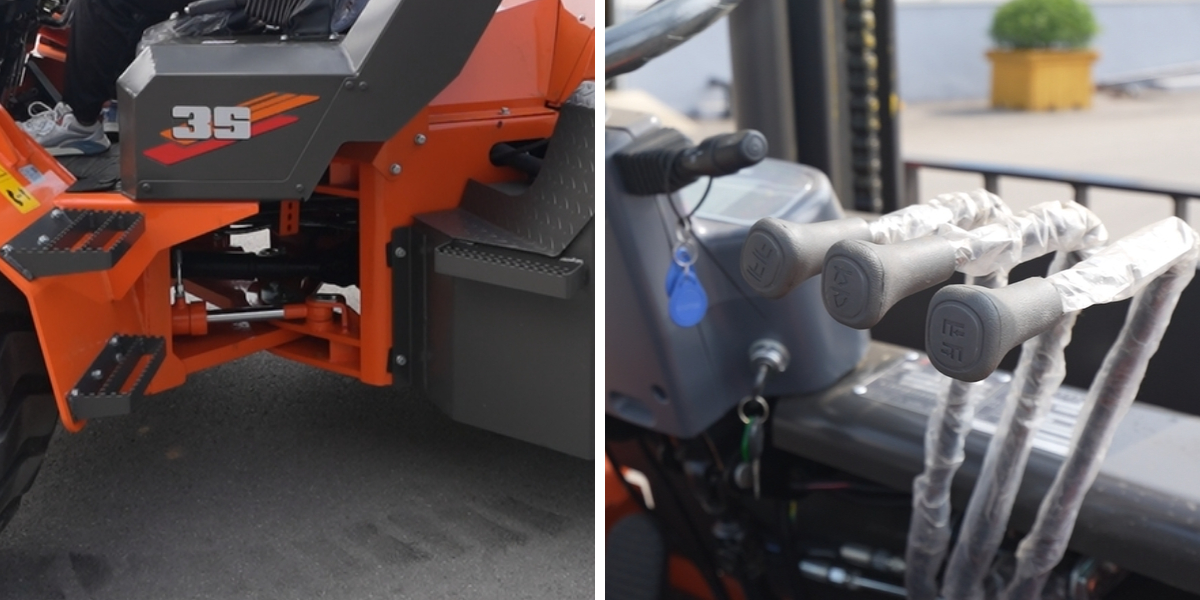

The front and rear frame structures are reasonable,sturdy and durable,with a central hinge,a small turning radius for the whole machine,and flexible maneuverability. | The control lever is clearly marked and the operation is simple, making it easier for beginners to learn to operate |

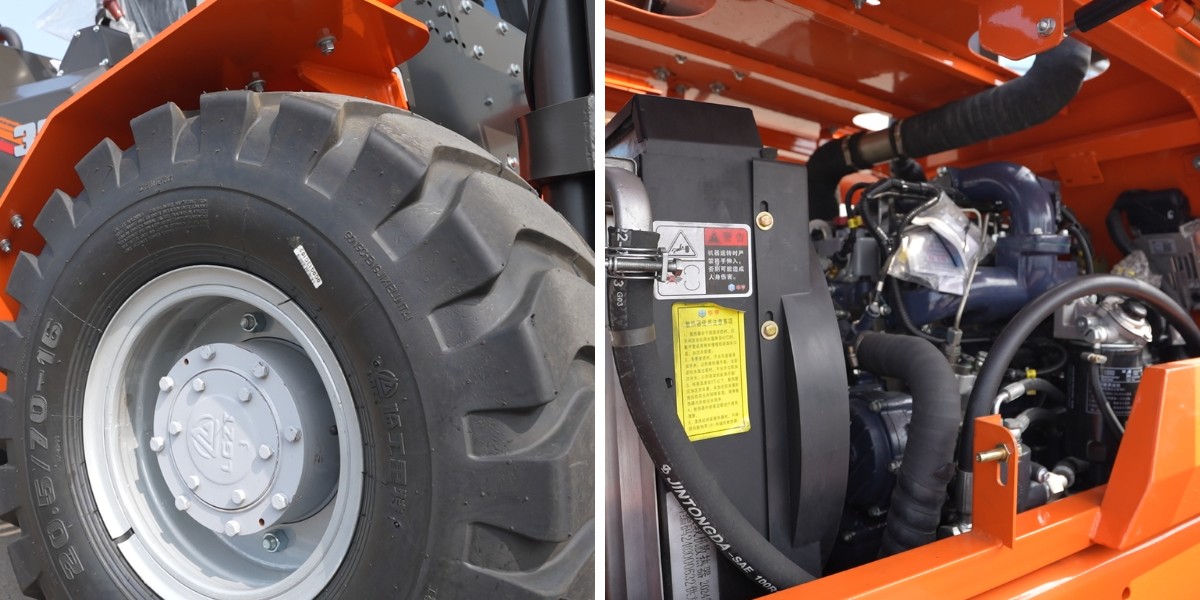

The large tires have a large ground contact area and strong grip, enabling normal operation in harsh terrain | Using well-known Chinese brand engines and strong power,low noise,environmental protection and energy saving. |

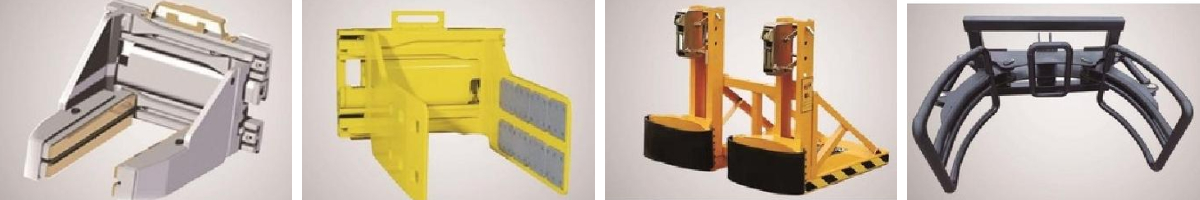

Accessories
| Brick clamp | Soft clamp | Double bucket clamp | Steel pipe clamp |
Technical Parameters
Project | Units | CPCDY35 |
Rated Load | kg | 3500 |
JLoad Center Distance | mm | 500 |
H1Max.Lifting Height | mm | 4000 |
H3 Free Lifting Height | mm | 50 |
L1*W*TFork Size | mm | 1070X125X50 |
Mast Inclination | deg | 6/12 |
L3 Front Overhang | mm | 668 |
L4 Rear Overhang | mm | 1176 |
Overall Dimensions:L1 Total Length | mm | 4740 |
W1Overall Width | mm | 1830 |
H2 Mast Standard Height | mm | 2700 |
H4 Frame Height | mm | 2130 |
Shelf Height | mm | 1150 |
R1 Min.Turning Radius | mm | 4400 |
Max.Travel Speed(Full Load/Empty Load) | km/h | 25/17 |
Max.Lifting Speed (Full Load/Empty Load) | km/h | 335/321 |
Max.Grade | % | 20 |
Working Weight | kg | 5400 |
Tire | 20.5/70-16 Semi-solid tire | |
Tread | mm | 1520 |
L2 Wheelbase | mm | 1885 |
L2 Wheelbase | mm | 245 |
Fuel Tank Capacity | L | 50 |

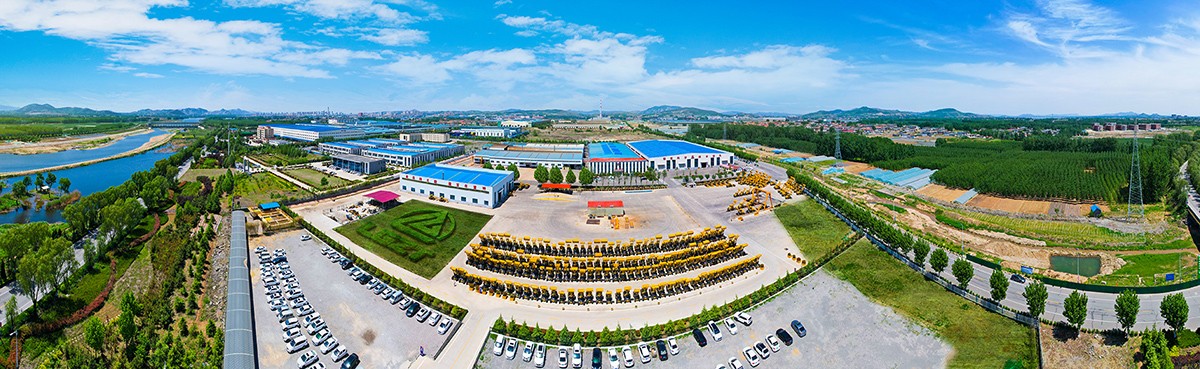

Company Strength:
Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.

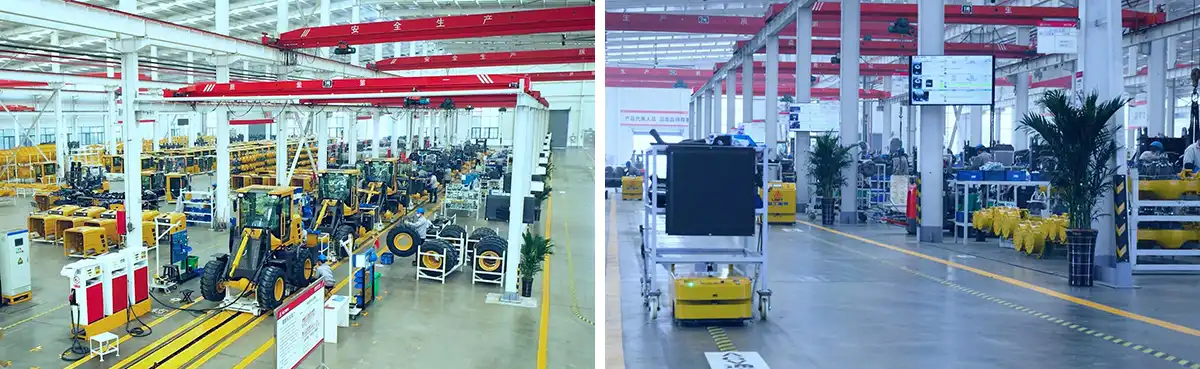

The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
