Mini Articulated Loaders

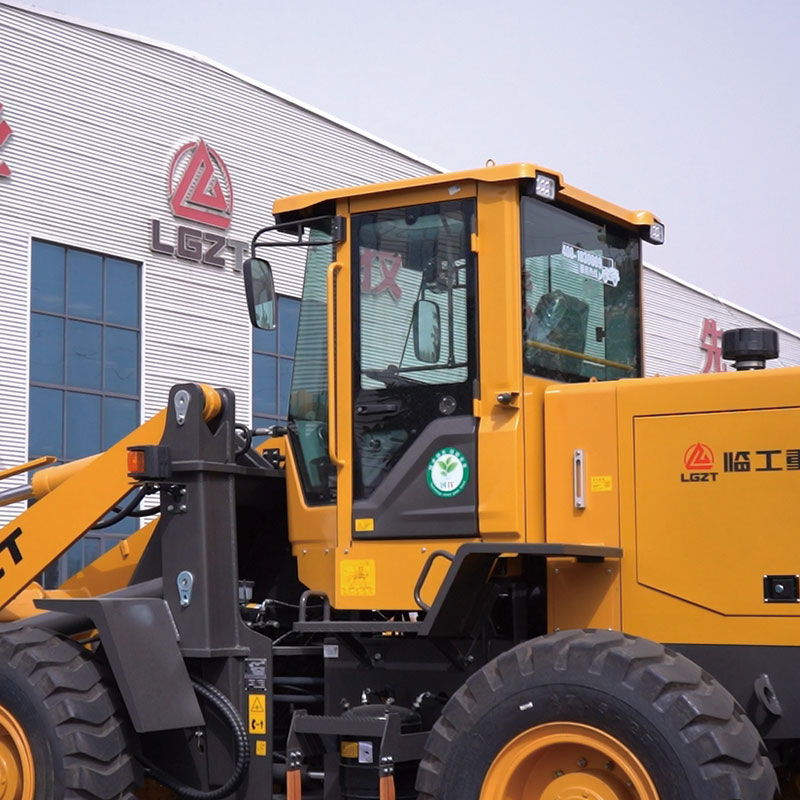

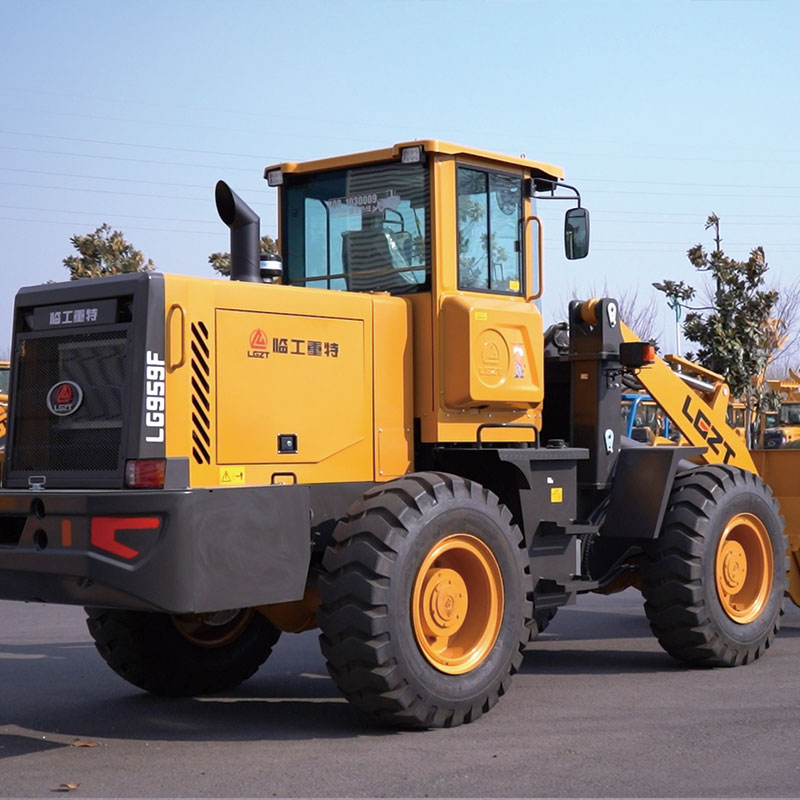

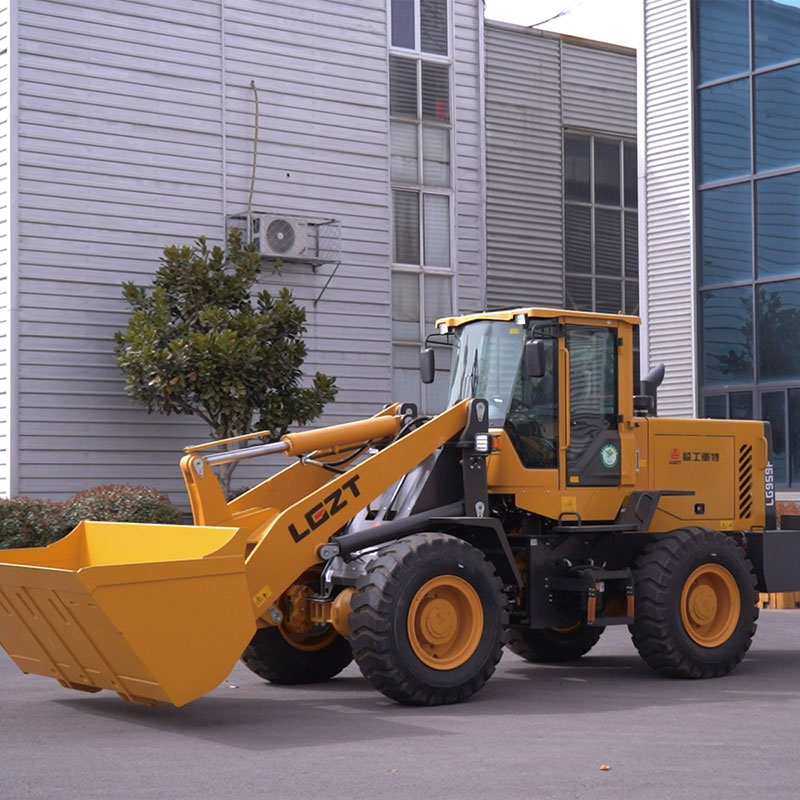

LG959F wheel loader

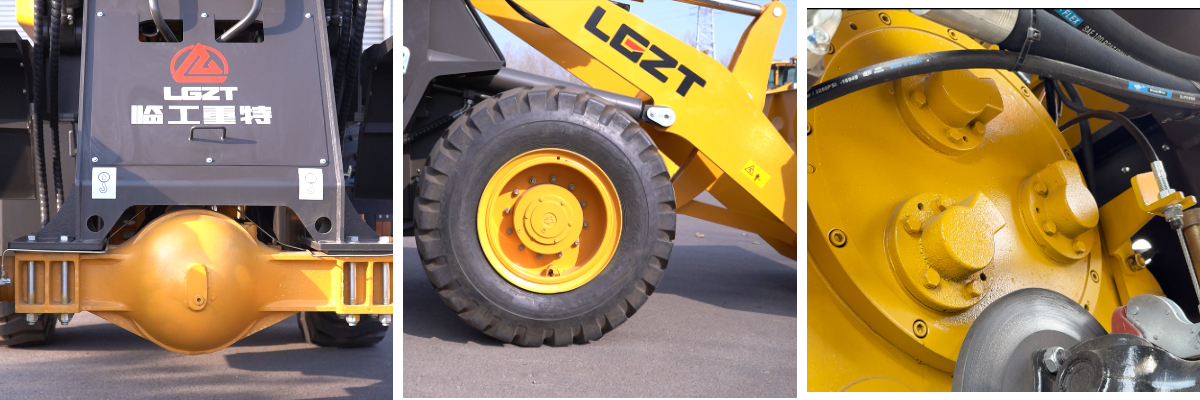

1、It is equipped with a 3T drive axle of the workwear version
2、Equipped with a 428 transmission
3、17.5-25 tires, with strong load-bearing capacity, excellent grip and good passability

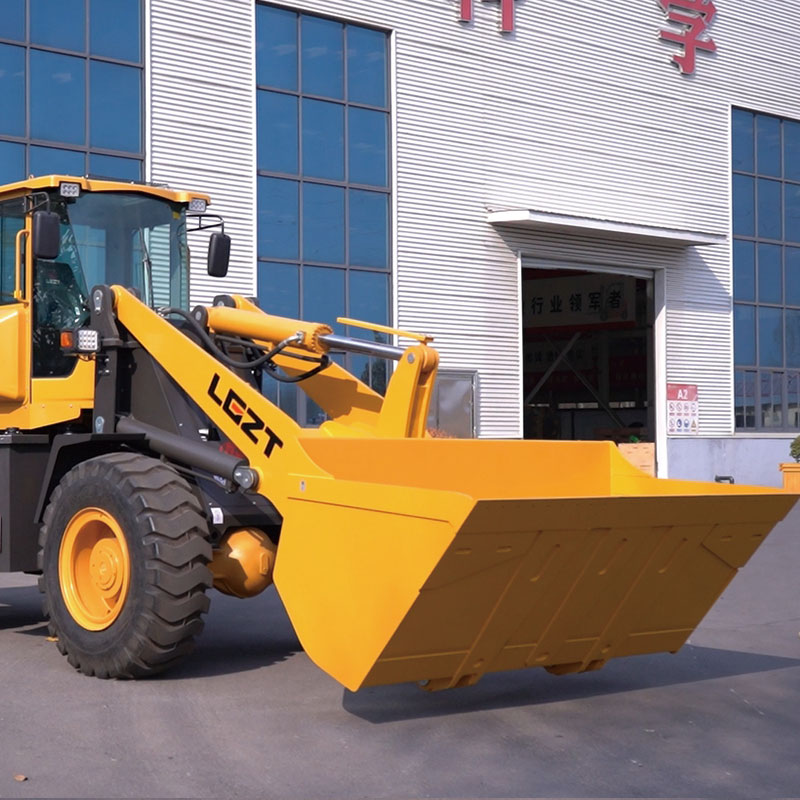

Unloading system: The unloading height of up to 4.5 meters, in combination with a 3-ton class tooling bucket, enables efficient operation of grain transfer and cargo loading and unloading. The optimized lifting mechanism design ensures stability and accuracy under heavy-load conditions
Powertrain: Equipped with an optimized and matched power system: 3T drive axle for industrial use +428 transmission + professional-grade engine. It offers high-torque output at low speeds and intelligent switching between high-speed driving modes. 17.5-25 tires provide excellent carrying capacity and off-road performance
Hydraulic system: The dual-pump pilot hydraulic system is equipped with a steering priority valve. It reduces energy consumption by 15% while increasing response speed by 10%, achieving a balance between precise control and energy-saving operation
Ergonomics • Newly upgraded cab: Shock absorption and noise reduction technology reduces vibration intensity by 30% • Widened field of vision design combined with intelligent instrument system enhances operational safety under complex working conditions
Performance Parameters:
ITEM | SPECIFICATION | ITEM | SPECIFICATION |
Bucket capacity（m3） | 1.33-1.8 | Transmission type | BYD4208L |
Rated load（kg） | 3000 | Axle type | 3 T axle |
Bucket width（mm） | 2435 | Tyre type | 17.5-25 |
Dumping height (mm) | 3600-4800 | Operating weight (kg) | 8500 |
Engine model | WP6G125E22 | Overall dimension (mm) | 7200*2435*3170 |
Rated power (kw) | 92 | Min. turning radius (mm) | 5075 |
Company Strength:

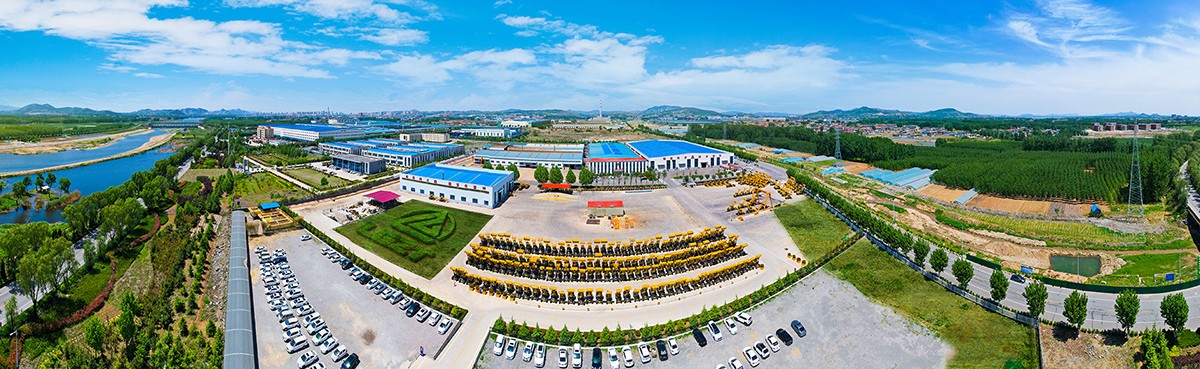

Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.

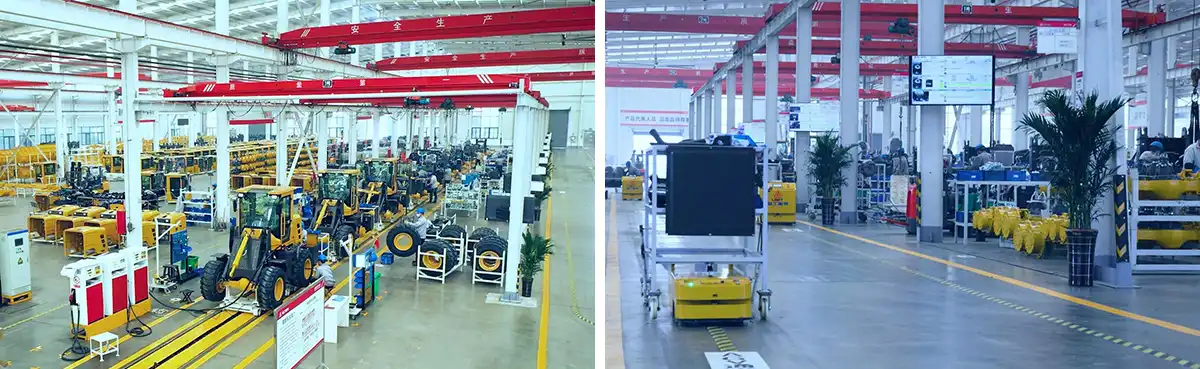

The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
