4Wd Forklift

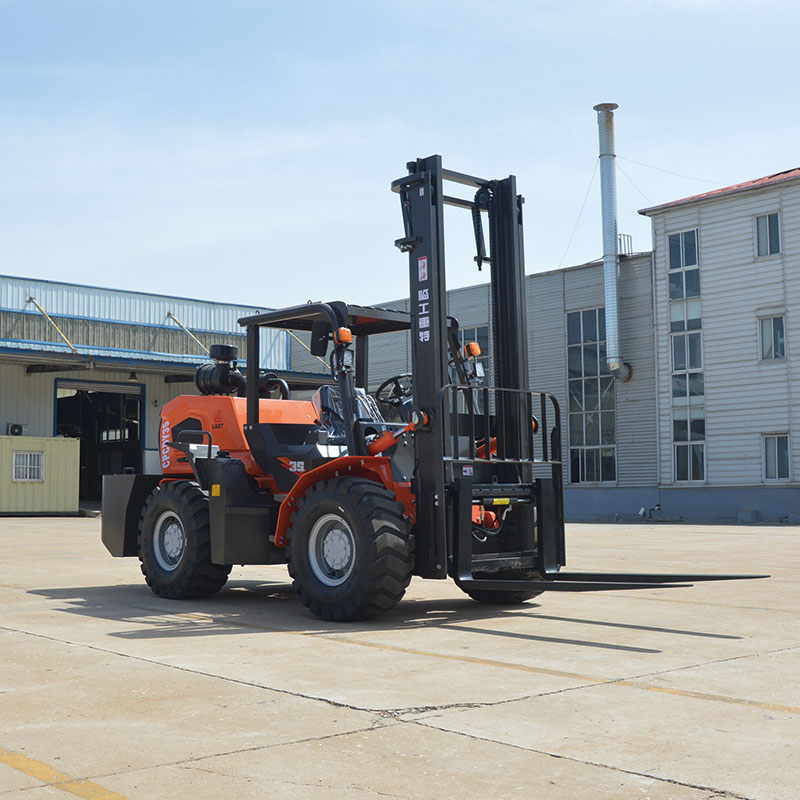

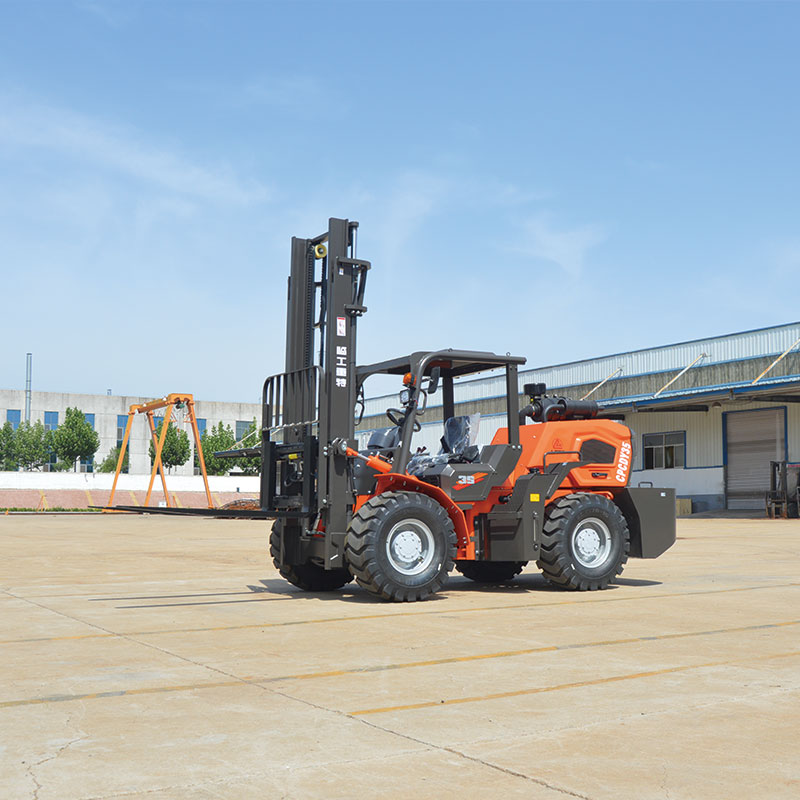

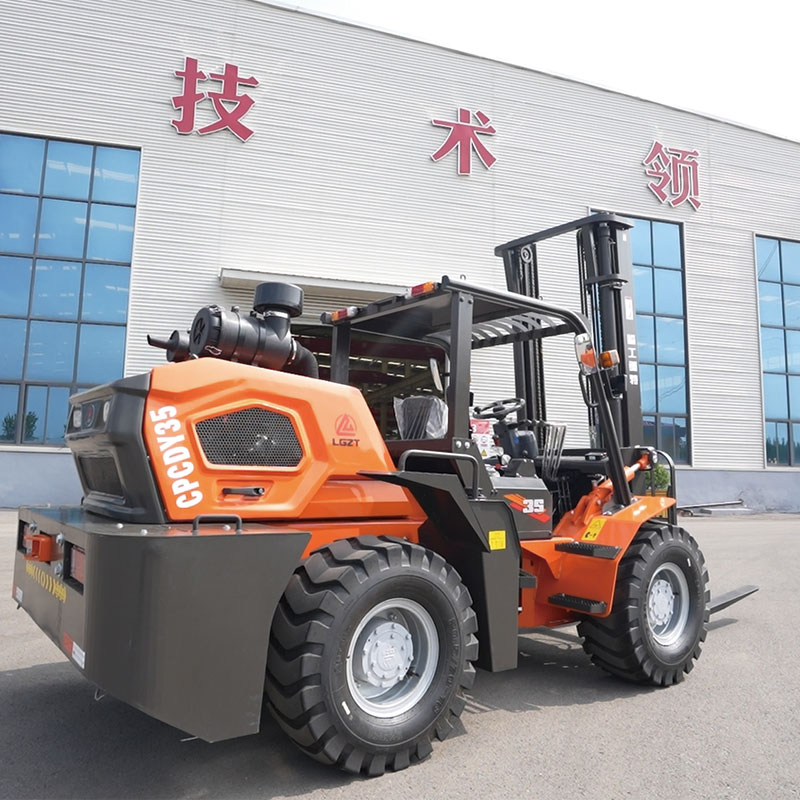

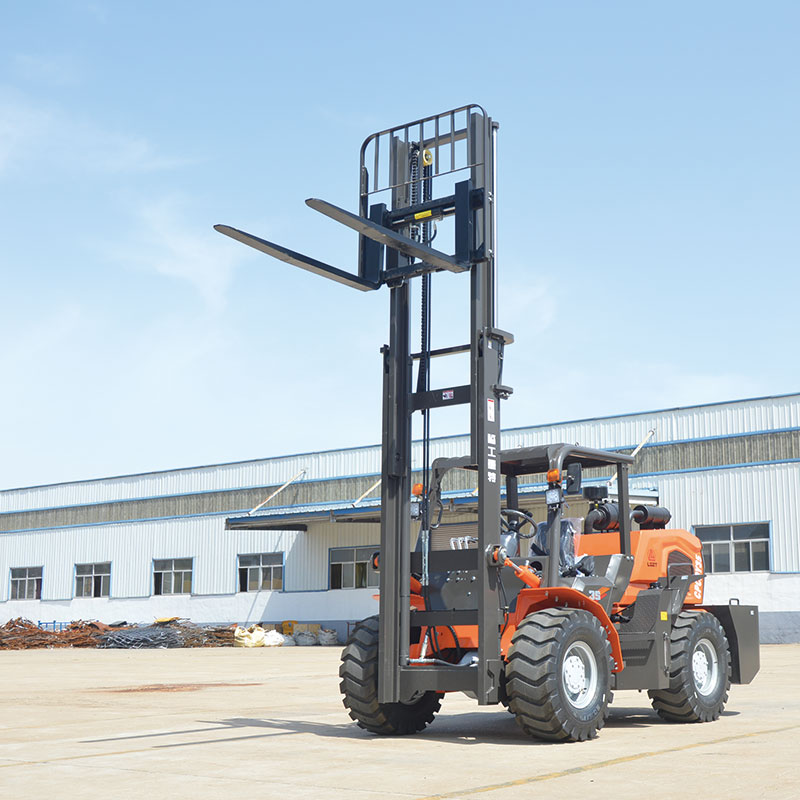

LGZT CPCDY35 4Wd Forklift
1、Strong off-road capability
2、3.5 tons of payload
3、A powerful engine
4、Original construction machinery manufacturer
LGZT 4wd forklift is an engineering handling equipment designed for complex terrain. Its core advantage lies in its strong all-terrain adaptability. It adopts a four-wheel drive system (4WD) and off-road tires with special tread patterns, which can stably drive in rugged scenes such as unhardened mud, gravel, ramps, etc. Unlike traditional forklifts, it is equipped with a reinforced chassis and an articulated steering structure, which greatly improves the maneuverability and passability of field operations.
LGZT 4wd forklift is often used in scenes such as construction sites, forest operations, oil field development and terminal container transshipment, and is particularly good at field material loading and unloading, short-distance transportation and other tasks.

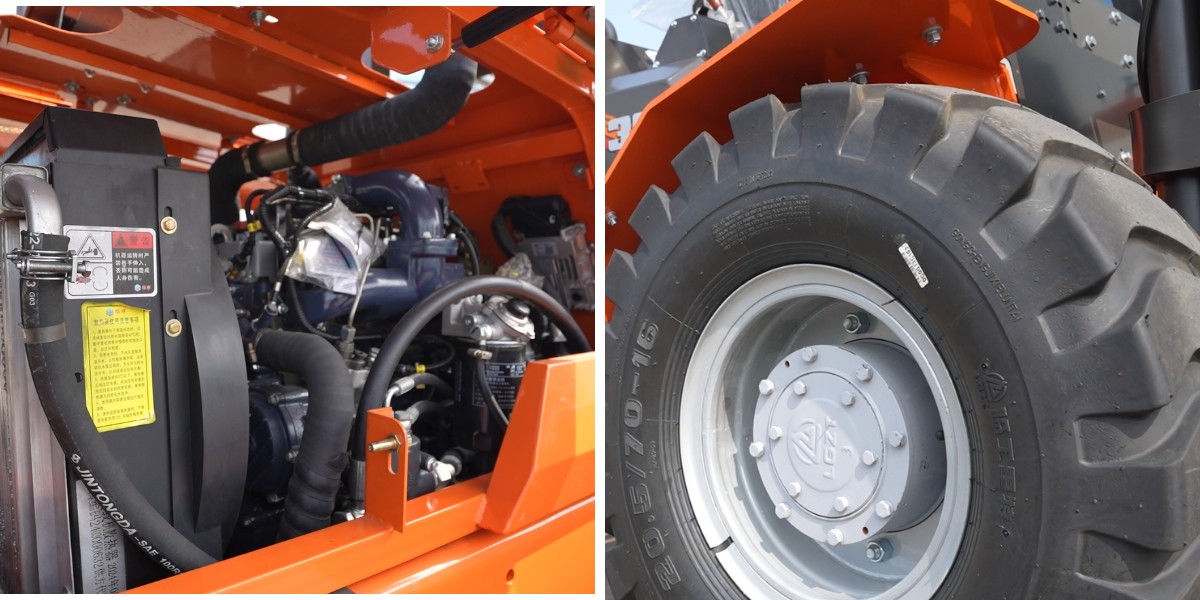

A powerful engine with low fuel consumption can provide strong power for off-road capabilities | Large-sized tires, with tire patterns, have strong grip and good passability, and can handle various harsh road conditions |

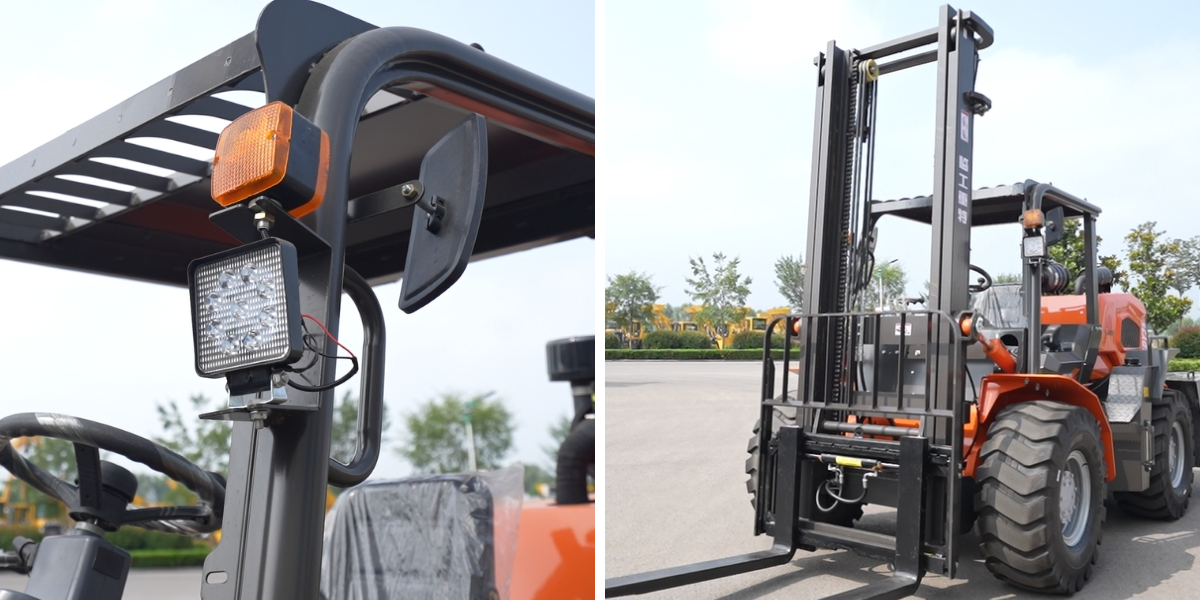

LED headlights can enhance the field of vision in the dark, and the high-strength canopy ensures the driver's safety | The fork is made of high-strength metal material and can adapt to high-intensity handling operations |
Parameter table
Project | Units | CPCDY35 |
Rated Load | kg | 3500 |
JLoad Center Distance | mm | 500 |
H1Max.Lifting Height | mm | 4000 |
H3 Free Lifting Height | mm | 50 |
L1*W*TFork Size | mm | 1070X125X50 |
Mast Inclination | deg | 6/12 |
L3 Front Overhang | mm | 668 |
L4 Rear Overhang | mm | 1176 |
Overall Dimensions:L1 Total Length | mm | 4740 |
W1Overall Width | mm | 1830 |
H2 Mast Standard Height | mm | 2700 |
H4 Frame Height | mm | 2130 |
Shelf Height | mm | 1150 |
R1 Min.Turning Radius | mm | 4400 |
Max.Travel Speed(Full Load/Empty Load) | km/h | 25/17 |
Max.Lifting Speed (Full Load/Empty Load) | km/h | 335/321 |
Max.Grade | % | 20 |
Working Weight | kg | 5400 |
Tire | 20.5/70-16 Semi-solid tire | |
Tread | mm | 1520 |
L2 Wheelbase | mm | 1885 |
L2 Wheelbase | mm | 245 |
Fuel Tank Capacity | L | 50 |

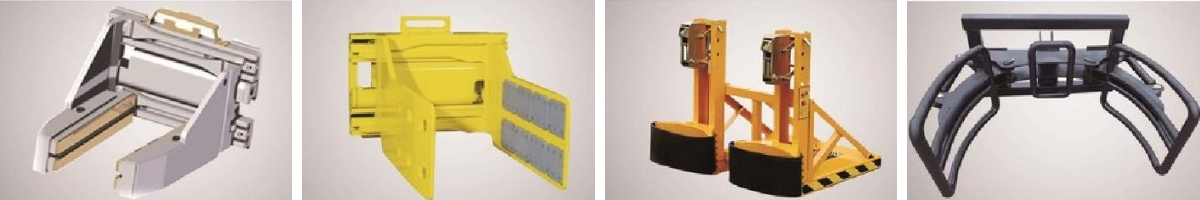

Accessories
Brick clamp | Soft clamp | Double bucket clamp | Steel pipe clamp |
Company Strength:

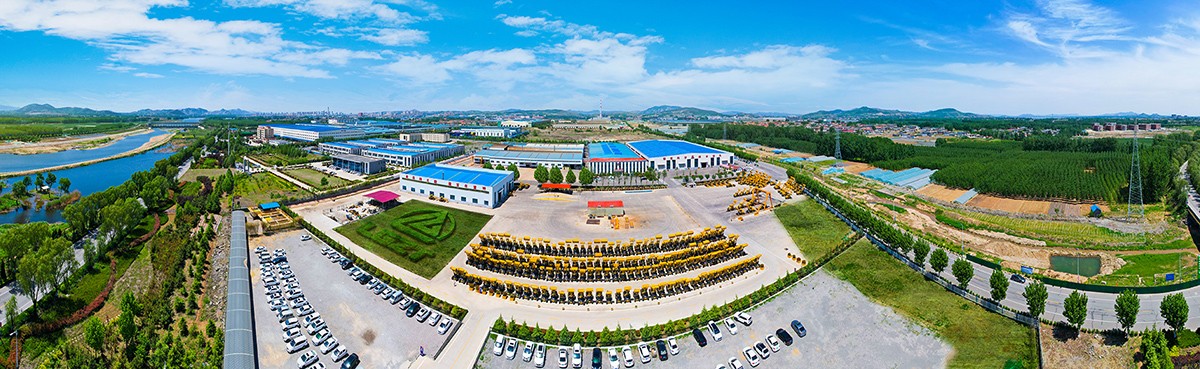

Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.

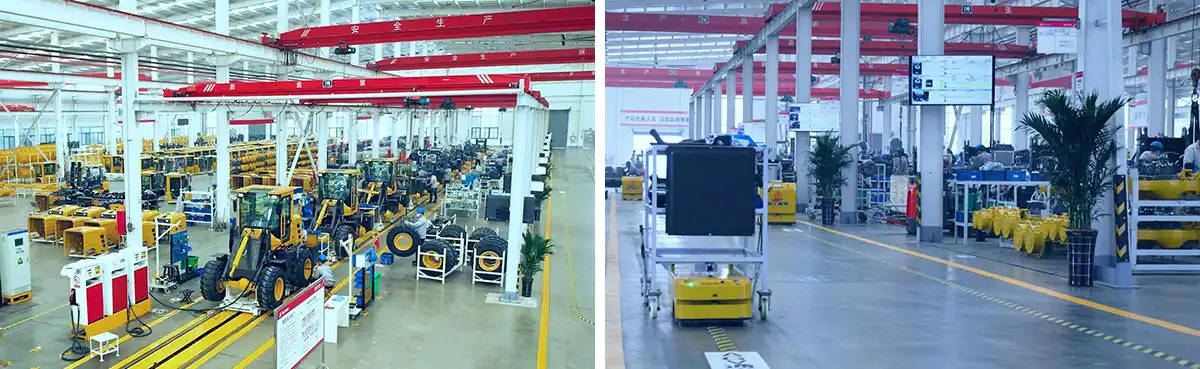

The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
