2T Wheel Loader

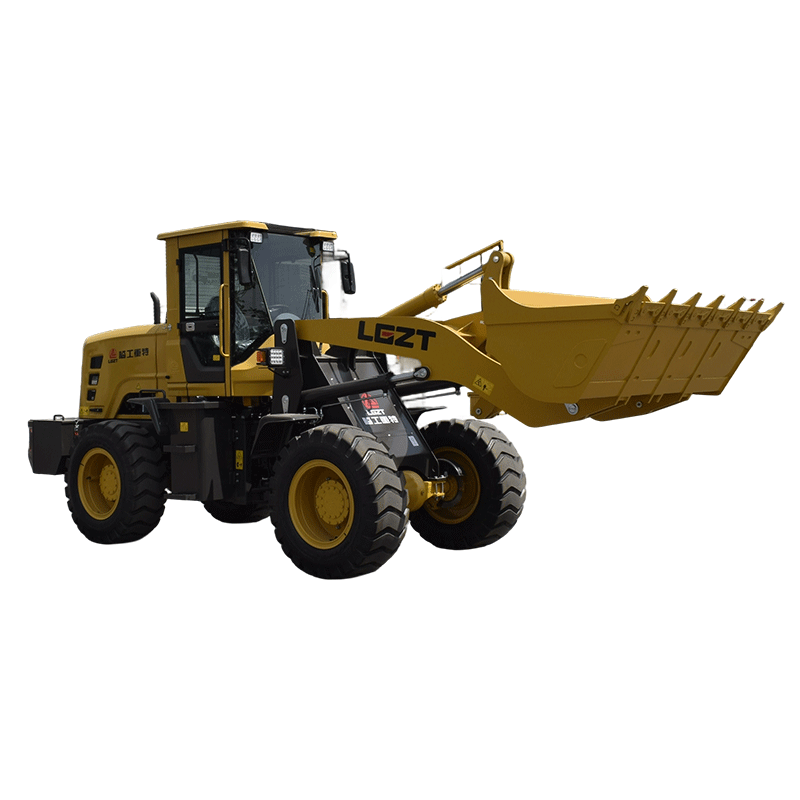

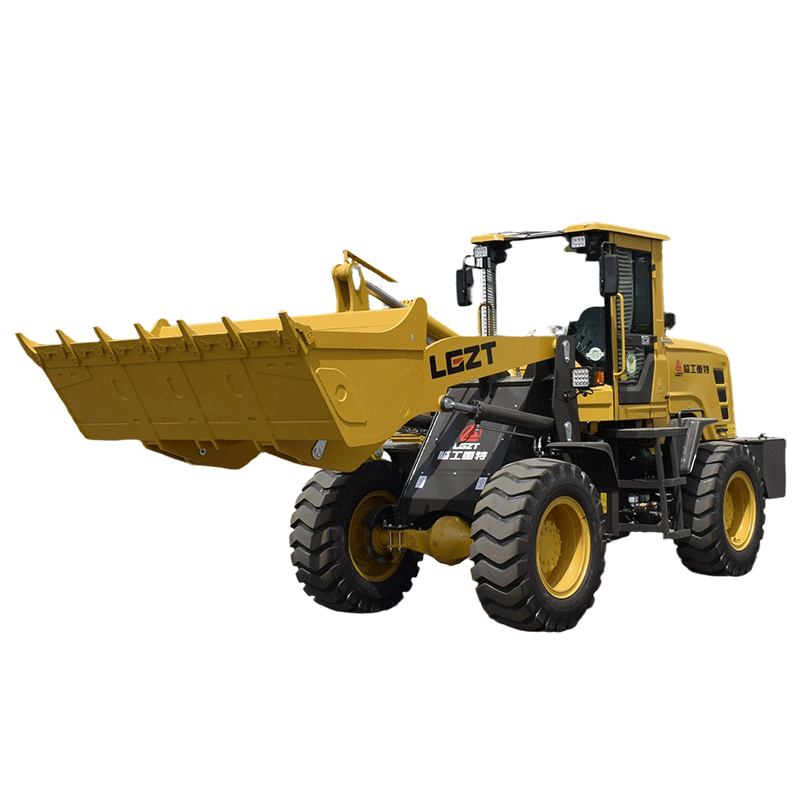

LG939F Wheel Loader
1. Strong power: Equipped with YUNNET YN38CBF4 engine, the power output is sufficient to meet all kinds of heavy-duty operation requirements, allowing the loader to perform well in loading and unloading, handling and other work.
2. Good load carrying and passing: the large wheel side reinforced drive axle has strong load carrying capacity, which can adapt to complex working conditions and heavy loads; together with 16/70-24 tyres, it has large grounding area, good grip, and good passing, which can drive stably in both rugged construction sites and soft fields.
3. Efficient and reliable transmission: 280 split gearbox is easy to repair and maintain, reducing cost and difficulty, and with reasonable speed ratio configuration, it can achieve efficient operation and ensure stable and reliable power transmission.
4. Driving comfort: the new cab is spacious and has a wide field of vision; the luxury handbrake is convenient and comfortable to operate; the airbag seat can be automatically adjusted according to the driver's weight and road conditions, and the damping effect is good, which reduces the feeling of bumps and reduces driving fatigue.
The LG939F Wheel Loader is a tough and reliable 2T wheel loader built to handle medium-sized construction, agriculture, and logistics projects. It’s perfect for moving building materials, leveling earth, and general material handling. With a strong structure and stable power system, this loader balances high load capacity with flexible maneuvering, making it a solid choice for jobs that demand both strength and precision. Plus, you can easily add attachments to turn it into a multi-purpose workhorse, giving you more value for your money.
What really makes the LG939F Wheel Loader stand out is its smart design for long-term performance. It’s built to be durable and low-maintenance, helping you save time and reduce operating costs. Whether you're dealing with heavy loads or tight workspaces, this 2T wheel loader delivers consistent performance and reliable operation. It's the ideal combination of efficiency, versatility, and cost-effectiveness for real-world work conditions.
Product Advantages:
1. Convenient maintenance: the large side door hood facilitates daily inspection, maintenance and repair of the engine and other components, which can shorten the repair time and improve the equipment utilisation rate10.
2. Stable hydraulic system: The back hydraulic tank helps to optimise the distribution of the centre of gravity and improve the stability of the whole machine, and it also facilitates the maintenance and management of the hydraulic system and reduces the risk of hydraulic oil leakage.
3. High degree of intelligence: CAN communication instrumentation can monitor the loader's engine speed, oil temperature, oil pressure, power and other operating parameters in real time, and has a fault diagnosis function, which can detect and prompt problems in time, facilitating rapid maintenance.
4. Strong environmental adaptability: optional cold and warm air-conditioning, creating a comfortable working environment for the driver, no matter hot or cold can keep the driver in good working condition and improve work efficiency.
Product Details:

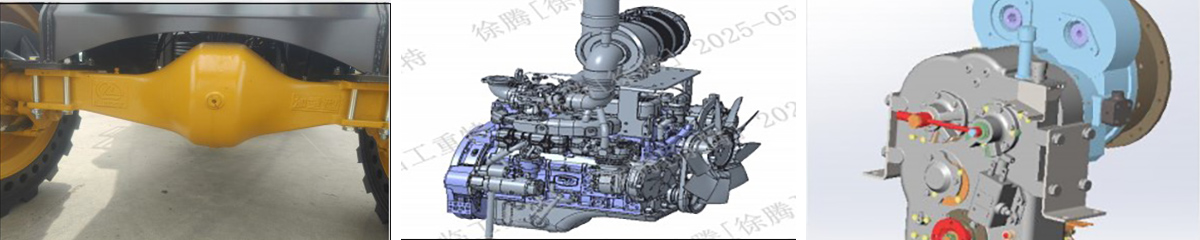

Engines:
(1) Equipped with YCD4J22T-115 engine, with power 85Kw and torque 390N.m, the power output is sufficient to meet all kinds of heavy-duty operation requirements, allowing the loader to perform well in loading and unloading, handling and other work.
(2) Turbocharging improves the air intake efficiency, air and fuel mix more fully, combustion explosive force is strong, even in the plateau or harsh environment can still maintain a stable power output.
Transmission System
(1) Adopting 280 split gearbox and optimally matching transmission speed ratio can effectively transfer power and improve the traction performance and acceleration performance of the loader.
(2) 280 split gearbox is convenient for maintenance, reducing cost and difficulty, and the speed ratio is reasonable, which can realise high-efficiency operation and ensure that the loader can be operated efficiently.
(3) Large wheelside reinforced drive axle, strong bearing capacity, can adapt to complex working conditions;
(4) With 16/70-24 tyres, it has a large grounding area, good grip, and good passability, no matter in the rugged construction site or soft field.
It can drive stably in both rugged construction sites and soft fields.
Performance Parameters:
Items | Parameters | Items | Parameters |
Minimum turning radius(mm)(outside edge of right front wheel) | 6060 | Bucket width/depth (mm) | 2235/565 |
Theoretical climbing capacity(°) | 25 | Wheelbase (mm) | 2850 |
Maximum travelling speed(Km/h) | 33 | No-load lifting time(s) | 5.8 |
Minimum travelling speed(Km/h) | 6 | No-load lowering time (s) | 3.94 |
Maximum unloading height(mm) | 3600 | Unloading time without load(s) | 1 |
Unloading distance(mm) | 600 | Three sum time(s) | 10.74 |
Unloading angle(°)Theoretical value | 35 | Maximum lifting power(kN) | 51 |
Bucket capacity(m³) | 1.1 | Maximum traction force(kN) | 48 |
Dimensions And Weight Parameters:
Items | Parameters | Items | Parameters | |
Length(mm) | 7060 | Minimum Ground Clearance (mm) | 350 | |
Height(mm) | 2950 | Wheelbase(mm) | 1650 | |
Width(mm) | 2230 | |||
Weights | Rated loading mass kg | 2000 | ||
Weight of the whole machinekg(without person) | 6025 | |||
Motor:
Items | Parameters | Items | Parameters |
Model | YN38CBF4 | Number of cylinders | 4 |
Manufacturer | YunNei | Bore/stroke (mm) | 102*115 |
Rated power(/kW) | 85 | Minimum fuel consumption rate (g/kW.h) | ≤205 |
Rated speed(r/min) | 2400 | Maximum torque(N.m) | 420 |
Displacement (L) | 3.76 | ||
Transmission System:
Items | Parameters |
Type | 280 split double height |
Transmission Gear | Front 4 Rear 4 |
Brake Type | Air Brake |
Axle | Large Wheel Edge Reinforcement |
Tyre type | 16/70-24 |
Front Wheel Air Pressure (Mpa) | 0.33 |
Rear wheel air pressure (Mpa) | 0.30 |
Steering System:
Items | Parameters |
Type | Fully hydraulic steering |
Steering angle(°) | 33 |
System working pressure (Mpa) | 16 |
Refuelling Capacity:
Items | Parameters | Items | Parameters |
Fuel oil(L)/theoretical volume | 96 | Engine(L) | 11 |
Hydraulic oil(L)/theoretical volume | 99 | Transmission (L) | 28 |
Bridge (L) - Single | 14 | Brake System(L) | 3 |
