2.5T Wheel Loader

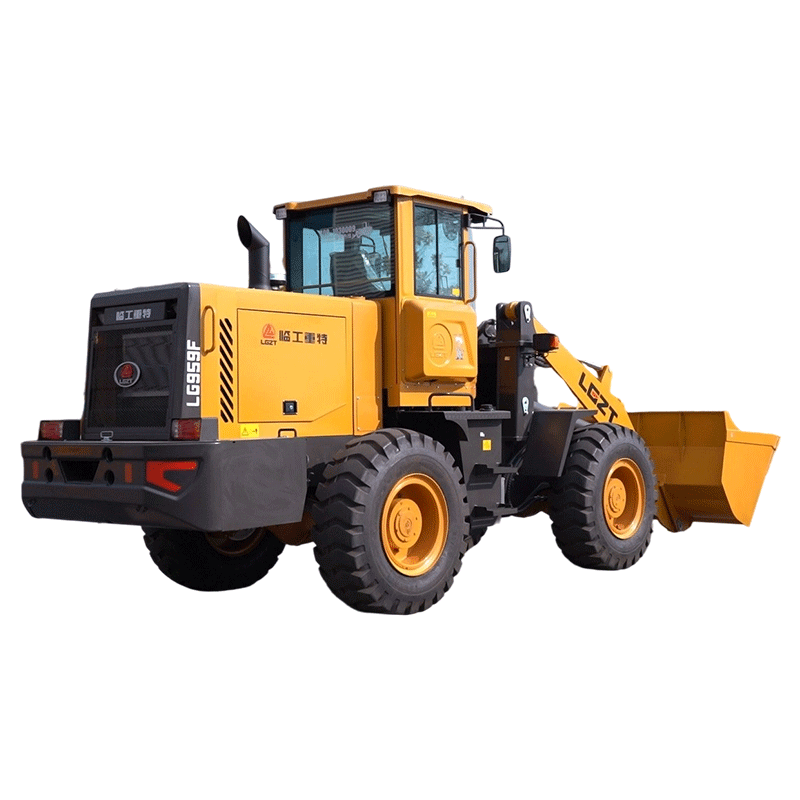

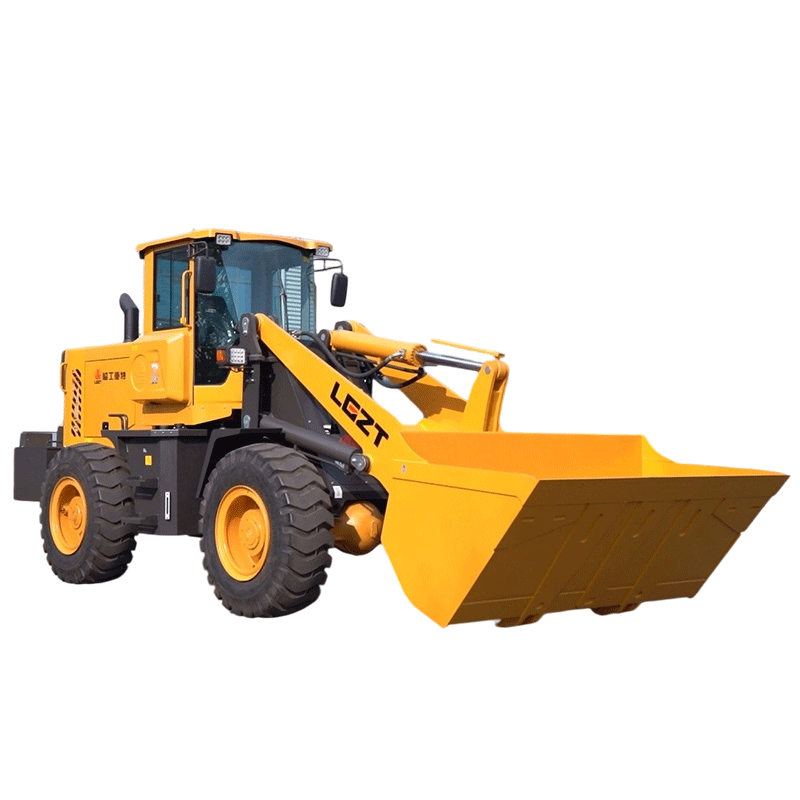

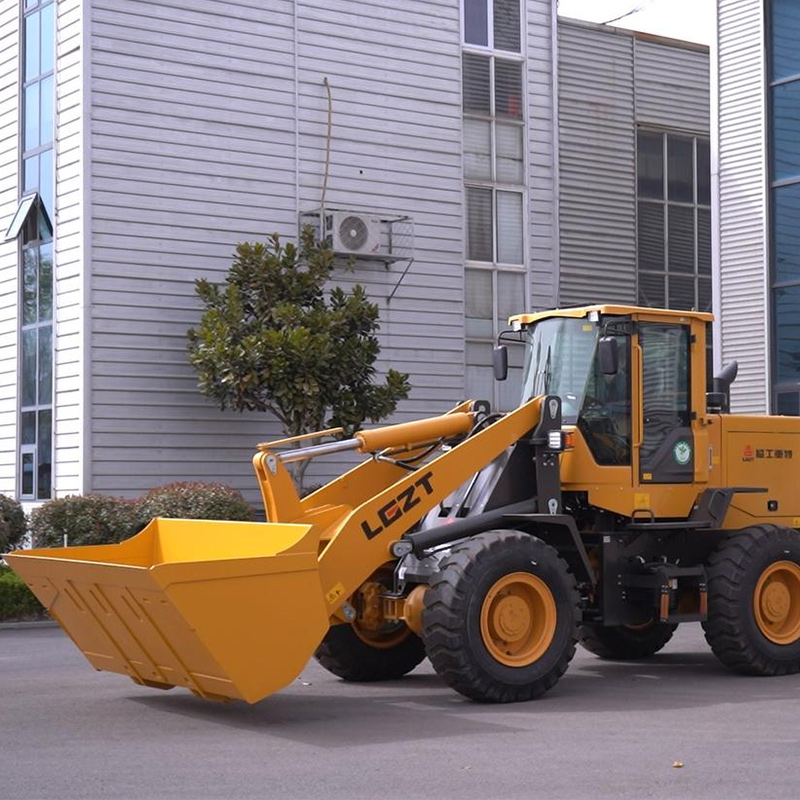

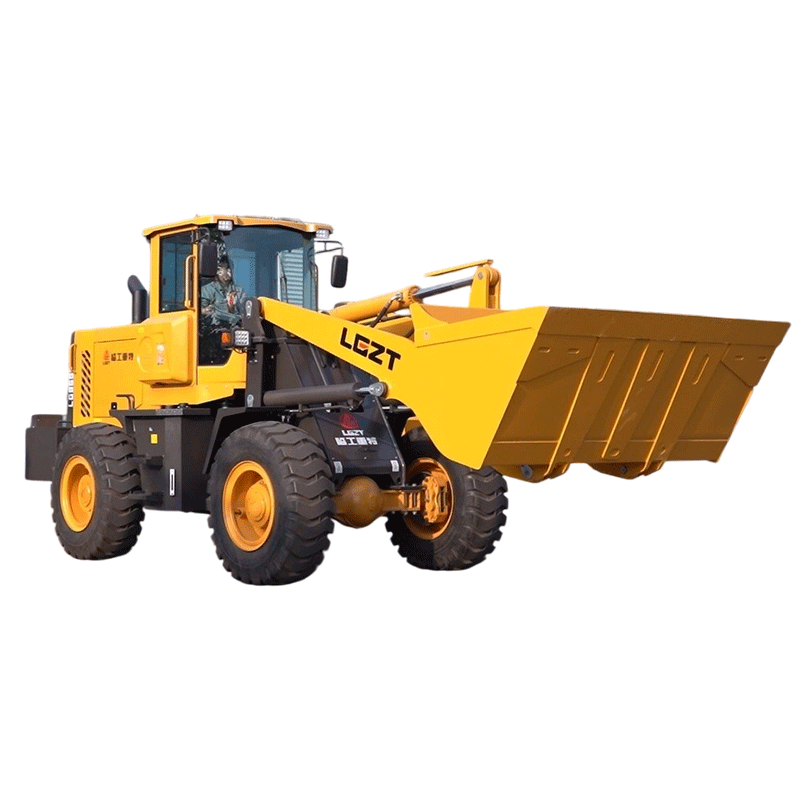

LG959F Wheel Loader
1.High Loading Capability: With a rated load of 2.5 tons, a 3-ton bucket, and an unloading height of up to 4.5 meters, the LG959F wheel loader is perfect for grain handling, freight transfer, and other high-demand operations.
2.Strong & Efficient Power System: Equipped with a YUNNET turbocharged intercooler engine (National IV), delivering 118 kW of power and 630 N·m of torque. The high-pressure common rail injection ensures strong power, quick response, and over 90KN of traction force.
3.Optimized Transmission System: Features a 428 transmission and 3T reinforced drive axle. With large traction in low gear and high speed in high gear, the powertrain delivers smooth, efficient performance in various terrains.
4.Advanced Hydraulic Design: Uses a double-pump hydraulic pilot system with steering priority, enabling smooth, flexible, and energy-saving operation, which helps lower operating costs and boosts overall efficiency.

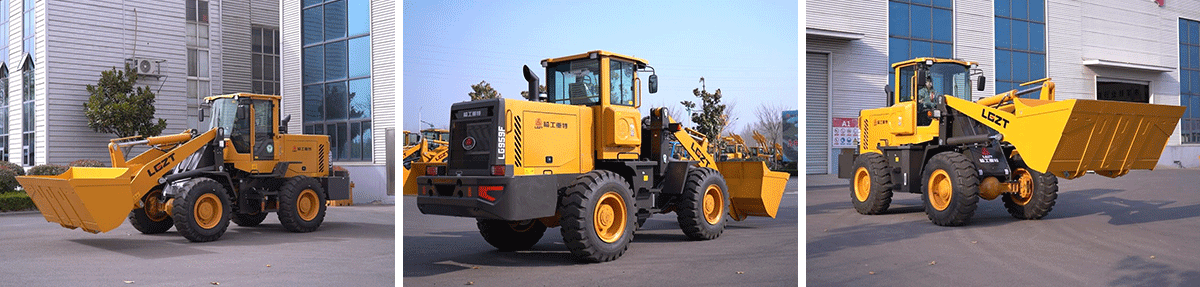

The LG959F is a high-loading wheel loader with an unloading height of up to 4.5 metres, a rated load of 2.5 tonnes, and a 3-tonne bucket, which makes it easy to handle both grain loading and freight forwarding.
Equipped with YUNNET supercharged intercooled National IV engine with high-pressure common rail fuel injection system, the power is up to 118kw, the torque is up to 630N.m, and the traction force is up to 90KN, which helps you to easily cope with all kinds of challenges and significantly improve the operating efficiency with strong power, reliable load bearing and efficient operating performance.

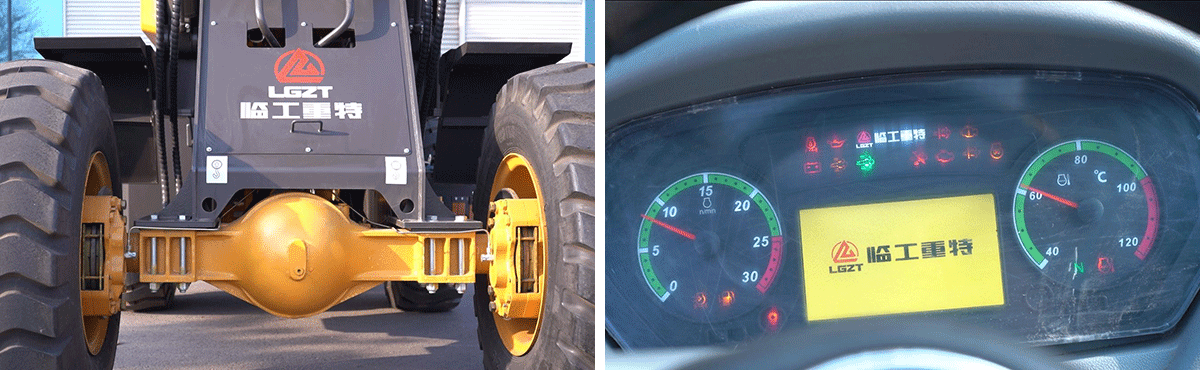

LG959F wheel loader is equipped with work version 3T drive axle, equipped with 428 transmission, engine, transmission, drive axle matching optimisation, large traction in low gear, high speed in high gear, 17.5-25 tyres, strong carrying capacity, strong grip, good passability, adapting to all kinds of complex working conditions.

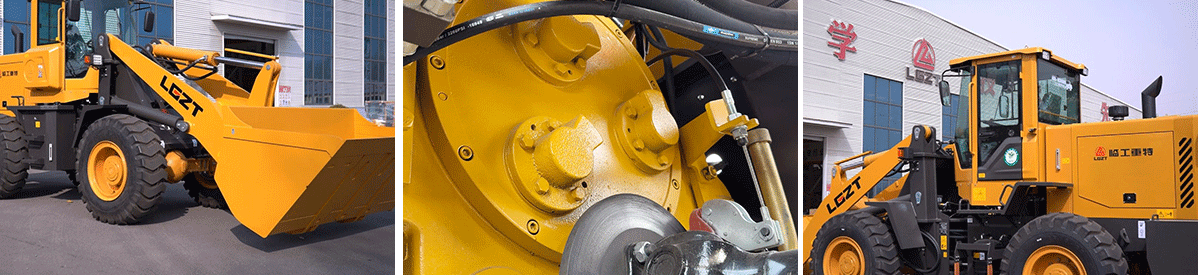

The hydraulic system design is upgraded, equipped with double-pump hydraulic pilot, steering priority, flexible and labour-saving operation, energy-saving and efficient, reducing operating costs.
The loader is also equipped with an advanced fault diagnosis system, CAN communication instrumentation, efficient and convenient man-machine interaction, reading data accurately and conveniently; it can realise automatic engine torque reduction, fuel with water alarm and other safety warnings.
The cab is newly upgraded, with significant improvement in shock absorption and noise reduction; the space is enlarged and the view is broad.
LG959F high loader, let you spend the price of agricultural loader, buy a quality loader, is your efficient work of the right hand!
Performance Parameters:
Items | Parameters | Items | Parameters |
Minimum turning radius(mm)(outside edge of right front wheel) | 5430 | Bucket width/depth(mm) | 2510/900 |
Theoretical climbing capacity(°) | 25 | Wheelbase(mm) | 2870 |
Maximum travelling speed(Km/h) | 36 | No-load lifting time(s) | 8.05 |
Minimum travelling speed(Km/h) | 8 | No-load descending time(s) | 5.6 |
Maximum unloading height(mm) | 4440 | No-load unloading time(s) | 1.1 |
Unloading distance(mm) | 1320 | Three sum time(s) | 14.75 |
Unloading angle(°)Theoretical value | 44 | Maximum rising force(kN) | 64 |
Bucket capacity(m³) | 2.5 | Maximum traction force(kN) | 90 |
Tipping load(kN) | 52 | Maximum position lifting force(kN) | 25 |
Dimensions And Weight Parameters:
Items | Parameters | Items | Parameters | |
Length(mm) | 8250 | Minimum Ground Clearance (mm) | 415 | |
Height(mm) | 3170 | Wheelbase(mm) | 1860 | |
Width(mm) | 2430 | |||
Weights | Rated loading mass (kg) | 2500 | ||
Overall weight (kg) without people | 9880 | |||
Motor:
Items | Parameters | Items | Parameters |
Model | YN48CCD4 | Number of cylinders | 4 |
Manufacturer | YunNei | Bore/stroke (mm) | 108*132 |
Rated power(/kW) | 118 | Minimum fuel consumption rate (g/kW.h) | ≤215 |
Rated speed(r/min) | 2200 | Maximum torque(N.m) | 630 |
Displacement (L) | 4.8 | ||
Transmission System:
Items | Parameters |
Type | 428 Transmission |
Transmission Gear | Front 4 Rear 2 |
Brake Type | Air Brake |
Axle | 3T axle |
Tyre type | 17.5-25 |
Front Wheel Air Pressure (Mpa) | 0.33 |
Rear wheel air pressure (Mpa) | 0.30 |
Steering System:
Items | Parameters |
Type | Fully hydraulic steering (power steering) |
Steering angle(°) | 31 |
System working pressure (Mpa) | 18 |
Refuelling Capacity:
Items | Parameters | Items | Parameters |
Fuel oil(L)/theoretical volume | 96 | Engine(L) | 12 |
Hydraulic oil(L)/theoretical volume | 96 | Transmission (L) | 28 |
Bridge (L) - Single | 14 | Brake System(L) | 3 |
Company Strength:
Founded in 2013, LGZT has been committed to the research, development, manufacturing, sales, and service of high-cost-performance small construction machinery. The company has successively been awarded as a National "Specialized, Refined, Unique, and Innovative" Little Giant Enterprise, a National High-tech Enterprise, a Shandong Province Quality Brand, and a Shandong Province Manufacturing Single-item Champion. It currently offers six major product series, including ZL, LG, W, WE, export-oriented, and all-terrain forklifts, with more than 1,000 varieties in total. These products are exported to over 20 countries and regions, including Russia, Australia, and Vietnam.
The company is dedicated to continuously manufacturing reliable products and providing considerate and high-quality services to help global customers create greater value. It was the first in the country to apply car manufacturing processes to the production of small construction machinery. Equipped with the most advanced electrophoretic shot blasting and powder coating production lines in China, the company has achieved a green transformation from traditional oil-based paints and water-based paints to powder coating processes, completely solving the VOC pollution problem and addressing issues such as easy rusting and fading of small construction machinery.
